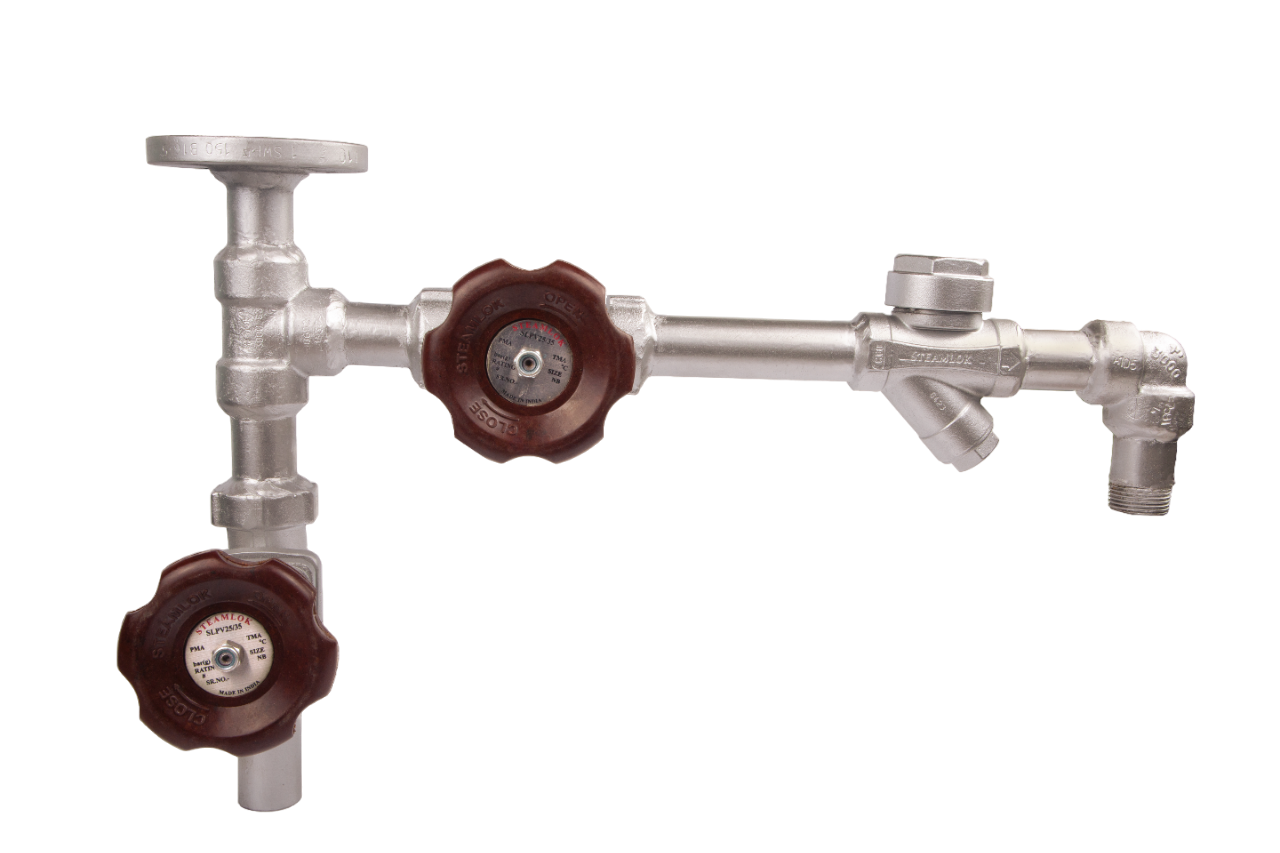

OPEN LOOP THERMODYNAMIC TRAP MODULE
Steamlok make open loop Thermodynamics trap module is used in main steam line, header and prs to discharge condensate water from the line.
It consists of two (2) piston valves one is inlet isolation valve and bypass valve along with SS304 Thermodynamic steam trap.
UNIQUE FEATURES
- Heat resistant handwheel.
- Uniquely designed maintainable seat.
- Oxidation free heat treatment (vacuum) for seat & disc.
- Unique sealing arrangement for extended life of valve.
- Ease of operations & maintenance.
- Functional test 100% on steam.
| SIZE (NB) | MOC | PMA | TMA | END CONNECTION | CLASS |
|---|---|---|---|---|---|
| 15,20,25 | SS 304 | 48.9 bar (g) | 538 deg C | Flange end Flange end |
150# 300# |

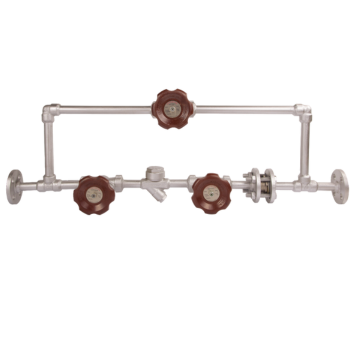

CLOSE LOOP THERMODYNAMIC TRAP MODULE
Steamlok make close loop Thermodynamics trap module is used in main steam line, header and prs to discharge recovery condensate water from the line.
It consists of three (3) piston valves one is inlet isolation valve, outlet isolation valve and bypass valve along with SS304 Thermodynamic steam trap and disk check valve (DCV).
UNIQUE FEATURES
- Heat resistant handwheel.
- Uniquely designed maintainable seat.
- Oxidation free heat treatment (vacuum) for seat & disc.
- Unique sealing arrangement for extended life of valve.
- Ease of operations & maintenance.
- Functional test 100% on steam.
| SIZE (NB) | MOC | PMA | TMA | END CONNECTION | CLASS |
|---|---|---|---|---|---|
| 15,20,25 | SS 304 | 48.9 bar (g) | 538 deg C | Flange end Flange end |
150# 300# |
