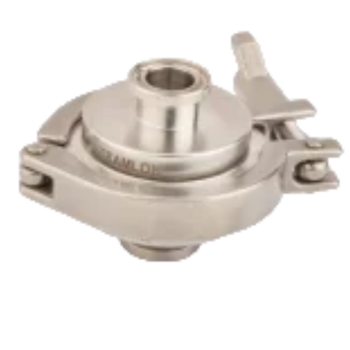

PHARMA TRAP-SLSST 79
SLSST-79 steam traps are designed for clean steam application. These traps consists of a temperature sensitive thermostatic element. These traps are constructed in stainless steel(SS3162) material with polished internal surface.
UNIQUE FEATURES
BROCHURE
- MOC for all wetted parts SS316L
- Internal surface finish of body and cap < 0.4 m Ra-Electro polished
- Self drainable body and cap design
- Functional test- 100% on Steam
| Sr No. | SIZE | ||||||
|---|---|---|---|---|---|---|---|
| A (min) | B (mm) | WEIGHT (gm) (APPRCIX) |
A (mm) | B (mm) | WEIGHT (gm) (APPRCIX) |
||
| 1 | 15NB | 63.9 | 57 | 677 | 63.9 | 82.6 | 651 |
| 2 | 20NB | 63.9 | 57 | 677 | 63.9 | 82.6 | 663 |
| 3 | 25NB | 63.9 | 57 | 686 | 63.9 | 82.6 | 670 |
