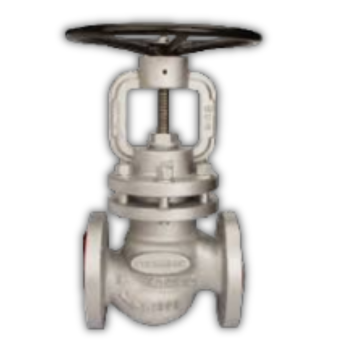

Piston Valve SLPV-25
SLPV-25 is Seatless & Glandless piston valve in Cast Carbon Steel [WCB]. Maintenance free design suitable for varied applications.
UNIQUE FEATURES
BROCHURE
- Unique Sealing Arrangement for Extended Life of Valve
- Wear & Erosion Resistance for Most of the Fluids
- Class VI Leakage Valve
- Use of Belleville Washer to Compensate Thermal Expansion
| SIZE (NB) | PMA | TMA | END CONNECTION |
|---|---|---|---|
| 50, 65, 80, 100, 125, 150, 200 |
19.6 bar (g) 5.5 bar (g) 51.1 bar (g) 28.8 bar (g) |
-29 to 38 deg C 425 deg C -29 to 38 deg C 425 deg C |
ASA 150 ASA 300 |
